Portable 12 Channel ECG Machine
| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Terms of Trade: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
Product Description
Product Description

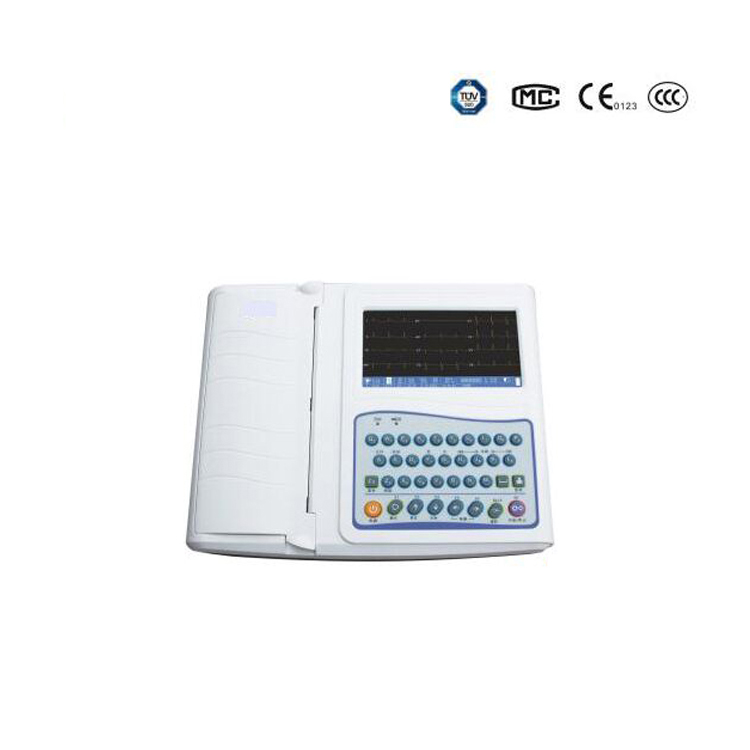

Factory Price 12 Lead ECG Machine Digital Portable 12 Channel ECG Machine
| Lead | standard 12 leads |
| lead acquisition | 12 leads synchronously acquisition |
| Work mode | MAN, AUTO, R-R, STOR |
| Filter | AC Filter : 50Hz / 60Hz / Off EMG Filter : 25Hz / 45Hz / Off |
| Common Mode Rejection | <1mV |
| Input circuit | Floating; Protection against Defibrillator effect |
| Input Impedance | ≥2.5MΩ ( 10Hz) |
| Electrode DC current | ≤0.1μA |
| Input dynamic range | ±5mVp-p DC bias voltage ≥±620mV |
| Patient current leakage | <10μA |
| Calibrating voltage | 1mV±5％ |
| Lag | <0.5mm |
| Sensitivity | 2.5,5, 10, 20, 40, mm/mV (±3%) |
| Paper speed | 6.25, 12.5, 25, 50mm/s（±3％） |
| System error | < ±5% or < ±40μV |
| Impulse and frequency response | Method A and Method B system test method |
| Inter-channel Interference | <2% |
| System Noise | <30μ Vp-p |
| HR range | 30 - 300 BPM ( ±1 BPM ) |
Accurate pacing pulse recognition and automatic analysis Manual, automatic, rhythm, and storage modes Freezing function: 12 seconds electrocardiogram before and after freezing for back printing Automatic mode: Review the electrocardiogram 10 seconds before printing, fast/save printing paper Storage mode: Display parameters and diagnosis are not printed, and electrocardiogram is stored for playback. AC/DC dual-purpose, built-in large container rechargeable lithium battery Wide voltage can adapt to 75-265V,50/60Hz AC power supply 12 lead waveform display and 250 case storage (SD card is scalable ) USB and RS232 communication interfaces (ECGNET ECG management software can be selected) USB host interface supports network transmission, external U disk and USB printer (optional) High-accuracy thermal printing mechanism, supporting 210/215mm roll paper or 210mm folding paper
Company Information
Our Service
1.The 1st Holter ECG manufacturer with 40 years' experience in China. 2.12 months warranty and lifelong after-sales service. 3.High quality with authorized certifications,CE,ISO,etc. 4.Professional engineer team with best technique support 5.24 hour online service, 100% response rate
Certifications
Packing & Delivery
FAQ
1.Q:Are you a factory or trading company? A: We are a factory located in Changchun,Jilin Province. 2.Q: What certification do you have? A:We have CE,CFDA, ISO9001,ISO 13485 3.Q:What’ your payment terms? A:We accept payment by T/T, Western Union, Paypal, L/C, Trade Assurance etc. 4.Q: It is my 1st time purchase products oversea, how to promise its safe? A:You can place orders on Alibaba, it takes guarranty for you. 5.Q: Could you offer intallation or tranning oversea? A: Yes, we offer the service online by remote
Changchun Yingwang Times Digital Co., Ltd.
Changchun Yingwang Times Digital Co., Ltd was founded in 1979, located in Changchun, Jilin Province. It is a professional medical equipment manufacturing enterprise which is specializing in R&D,manufacture,sales and service of Dynamic ECG devices. Our company has participated in researching and developing the first clinical Holter in China in 1987.In 2000,we developed the first 12 leads Dynamic ECG system of 48 hours.From 2008,we developed networking ECG between towns and villages as the first domestic company . We has professional and technical support personnel, installers, engineers, designers and service personnel, to provide customers with a full range of services.The registered capacity of company is 1.4 million dollars.In 2018 ,we obtained ISO 13485 ,CE certificates. We also obtained 3 certificates for software copyrights and several certificates of utility model patents.
